The FOUR Megasquirt Rover V8 MS2X Kits all are 'Engine Specific' and contain everything required for a complete installation.
When we say 'Engine Specific' - it means that every part is designed to fit the Specific V8 Engine version in question - Perfectly !
If you haven’t already we strongly suggest you read the 'Tab' 5th down on the Left called
‘Which Kit to Choose ?’
The section is designed to help to understand the key differences between MS1X & MS2X filling in gaps & answering
questions and helps guide you towards choosing the most suitable Megasquirt V8 System for your V8.
Even then, we would still suggest you ring & have a proper chat with us & complete with a list of questions or queries !
Just as MS1X customers hate wiring & MS2X Customers are no different, and you to will love the Plug ‘n Play MS2X Looms !
Looms also come complete with their own built in 'Relay' & 'Fuse' box, plus a 'Master Fuse' too, giving serious protection.
The MS2X Kit Looms are professionally made Plug'n Play wiring looms, with only 7 wires to connect - These are listed below.
(PLUS Optional ‘Extra’ wires - ‘Tacho’ connection, & also a Lambda Plug should you - or is that
Have to - run 'Cats’ etc.)
The 7 Wires are your 'Switched Live' - We would recommend this is to your 'Ignition Switch' (Details in the Manual).
Fuel Pump 'Positive' wire. (If you are converting from a 'Carb' system you will need one of our High Pressure Fuel Pumps.)
The MS2X Looms Main 'Battery Positive' cable - Which goes to your 'Battery Positive' Terminal.
Then the MS2X Looms Main 'Negative' cable, Bolts onto the rear of your Cylinder Head.
Lastly, there are then 3 coloured wires for you to connect to your 'TPS' (Throttle Position Sensor)
Everything else is via Brand New fully labelled Plugs. When you have done the above - That's it - Your new Megasquirt MS2X Wiring Loom installation is finished !.
The 4 Differing MS1X Kits are dependent on your V8 engine variant - Identified below should you be unsure.

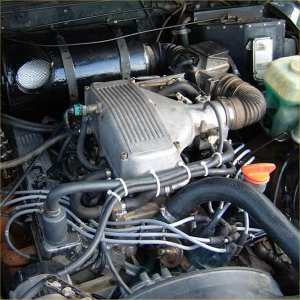

'V Belt' Engines are easily identified having more than 1 x Belt on the front - 2 sometimes even 3.

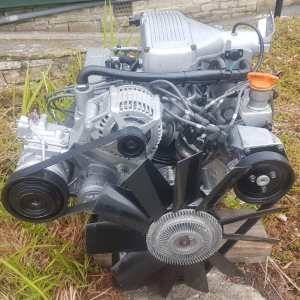

'Serpentine' Engines have just one Wide 'Grooved' belt that wraps around every pulley, also these have a Distributor & a Silver Plenum

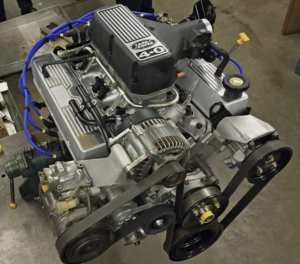

'GEMS' engines are also 'Serpentine', but have no distributor, and also have Black coloured Plenums

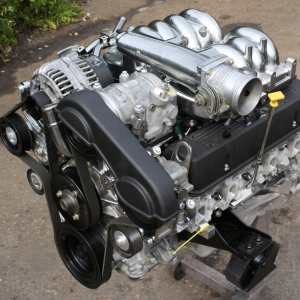

'THOR' engines have 'Banana' Shaped Inlet Manifolds on the top of the engine
Megasquirt V8 MS2X Kits - Select your Engine Kit from the 4 choices below - 'V Belt', 'Serpentine', 'GEMS' or 'THOR'
MS2X Ultra Kit 3.5 3.9 4.2 'V Belt' Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'V Belt' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS2X ECU) that actually is stable and works !
MS2X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant. Loom Adapter to control Via ECU Plenum Stepper Motor.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose 'Dinky Dizzy' Conversion or a full new 'Ignition Lead kit' - See 'V Belt' Section for details.
If you have the early 3.5 V8 running the (dreadful) 'Flapper EFI' system we do not recomend this for any Megasquirt Conversion & to upgrade to a 'Hotwire' Inlet assembly.
Flapper Trumpet & Plenum are a simple 'Nut & Bolt' swap over to Hotwire. Source your own, or we have 'Hotwire' Systems you can purchase. Ring or Email to discuss.
MS2X Ultra Kit 3.9 4.2 'Serpentine' Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'Serpentine' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Being a 'Serpentine' Kit a 'Blanking Dizzy' is included, as it is needed to allow the fitting of your new Serpentine 'Coil Pack Mounting' Unit. !
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS2X ECU) that actually is stable and works !
MS2X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant. Loom Adapter to control Via ECU Plenum Stepper Motor.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose a full new 'Ignition Lead kit' in Red or Blue - See 'Serpentine' Section for details.
MS2X Ultra Kit GEMS 4.0 4.6 Serpentine Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'GEMS' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS2X ECU) that actually is stable and works !
MS2X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant, Loom Adapter to control Via ECU Plenum Stepper Motor.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose a full new 'Ignition Lead Kit' in Red or Blue - See 'GEMS' Section for details.
MS2X Ultra Kit 4.0 4.6 THOR Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'THOR' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Adjustable Fuel Pressure Regulator Kit with Mounting Bracket (Will need suitable HP Pump) or we can supply ours as an Optional Extra.
MS2X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant. 'PWM' Cold Start / Idle Contoller + Fitting Kit
Coolant Hose Pipe Upgrade with new O Ring & Adapter plate for 'Top Hose' outlet (See THOR for pictures).
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS2X ECU) that actually is stable and works !
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose our popular 'Full Aluminium Thermostatic Control Upgrade Kit' and / or 'Straight Output Top Hose' Unit
Additional optional extra is also full new 'Ignition Lead Kit' in either Red or Blue (See 'THOR' Section for details of Optional extras.
