Megasquirt V8 - For 3.9 & 4.2 'Serpentine V8 Engines

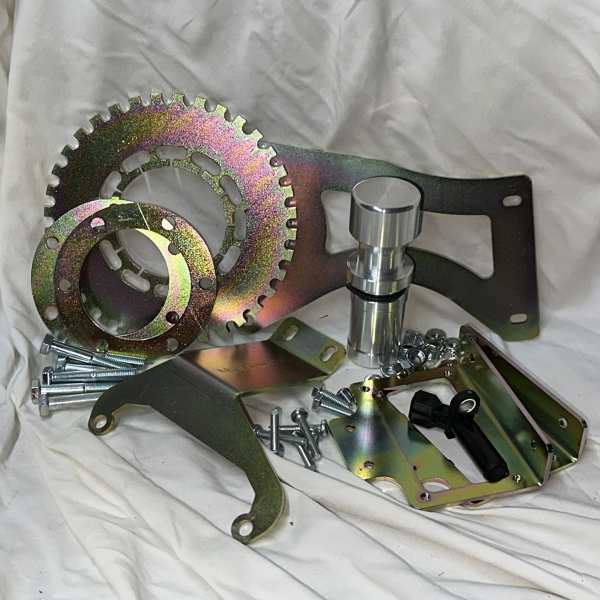

Serpentine 3.9 and 4.2 Trigger Wheel Kit

This is our CNC Laser Cut & Plated 5mm Trigger Wheel (its thickness gives reliability in both wheel strength & high quality system signal - even in bonnet deep mud)

Its been specifically made for the 'V Belt 'Serpentine' V8 variant with 'Slots' to allow fine timing adjustment to aid setting timing correctly even when fitted.
But, and this is important - This only fits NON GEMs 'Serpentine' engines - i.e. Engines that are 'Serpentine' AND have a Distributor.
The 'Slots' around the center mounting holes gives the ability for compensation for wrong timing if you don't get it quite right ! (You can correct around +/- 9 degrees.)

A 'Thick' CNC Steel 'Spacer' is included as part of the kit. This ring gives the correct 'Spacing Gap' from the 'Pulley Wheel', and finally a CNC 'Locking Ring'
which acts like a giant washer over all 6 x Pulley holes when all bolted up, making this a seriously strong set up - it needs to be as its one of the Key parts in any install.

These all have a deep 'Zinc Passivation' finish, and come complete with 6 x New Bolts (as the standard ones will be too short), plus 6 new Nylocs, and is designed to be used

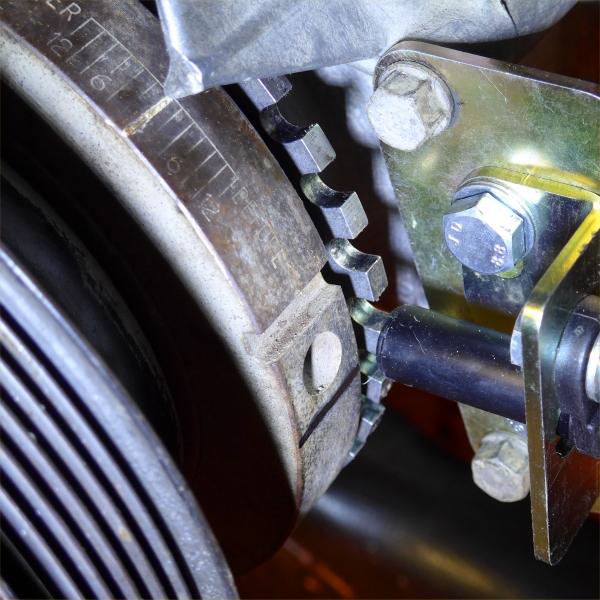

in conjunction with our 'Serpentine' VR sensor Bracket & our VR sensor. (Listed elsewhere below.)

We also supply these in 2 differing kits where you get the Trigger Wheel & VR sensor Bracket Kits & New VR Sensor, & Full Twin Coil Pack Mounting kit for either EDIS or VAG
Coil Pack Mounting, these are listed further below and offer a saving over buying the 4 x parts individually.

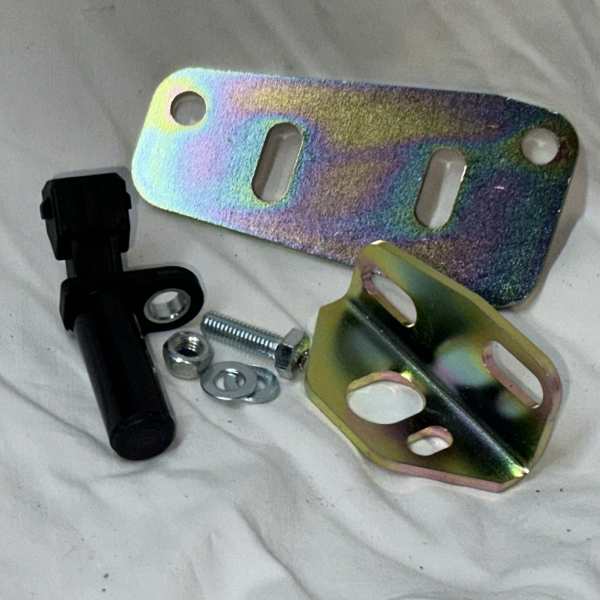

'Serpentine' VR Sensor Bracket and Sensor Kit

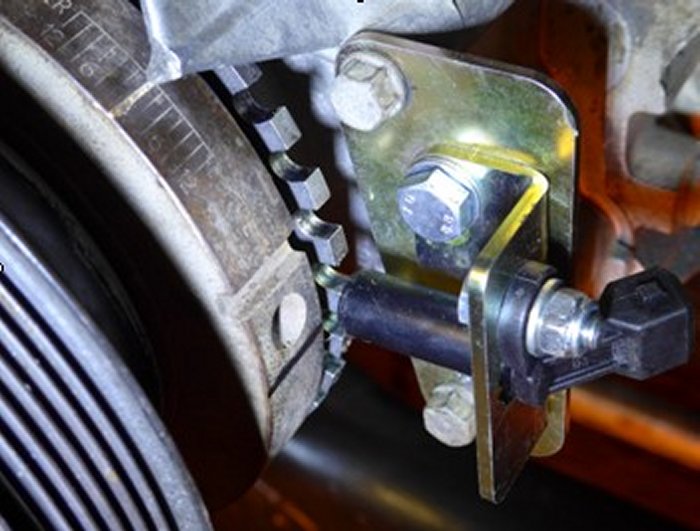

Our 'Serpentine' VR Sensor Bracket is specifically designed to be used with the Trigger Wheel Kit listed above & uses the existing Timing Cover Mountings, But,
and again this is important - this only fits NON GEMs 'Serpentine' engines - i.e. Engines that are both 'Serpentine' AND have a Distributor.

It has been designed for use with a Ford Type VR Sensor (also included in this kit), in a Passivated finish, with all fittings supplied.
The bracket has been designed to also allow 'Fine Adjustment' for getting the 'Air Gap' and position between the VR Sensor & the Trigger Wheel 'Spot On'.

The last part of this kit is a brand new Quality Brand New Ford 'VR Sensor'. We avoid pattern parts in 'white boxes' nobody wants to own up to making,
and, please go new, as a VR sensor is one of the key components in the EFI system, don't cut costs and use one from a scrap yard with 100,000+ miles use !

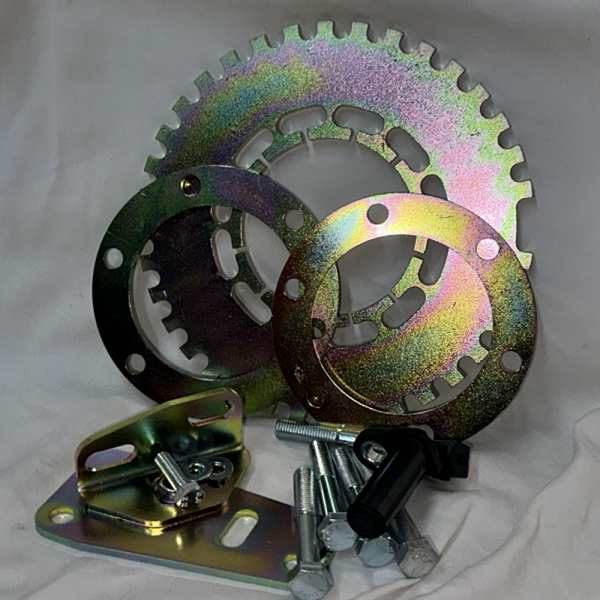

Serpentine Trigger Wheel, VR Sensor, and Bracket Kit

If you would like to buy both the 'Serpentine Trigger Wheel Kit' & the 'VR Sensor Kit' with 'New VR Sensor'
then this is the kit for you - and it saves you a bit of money as well !

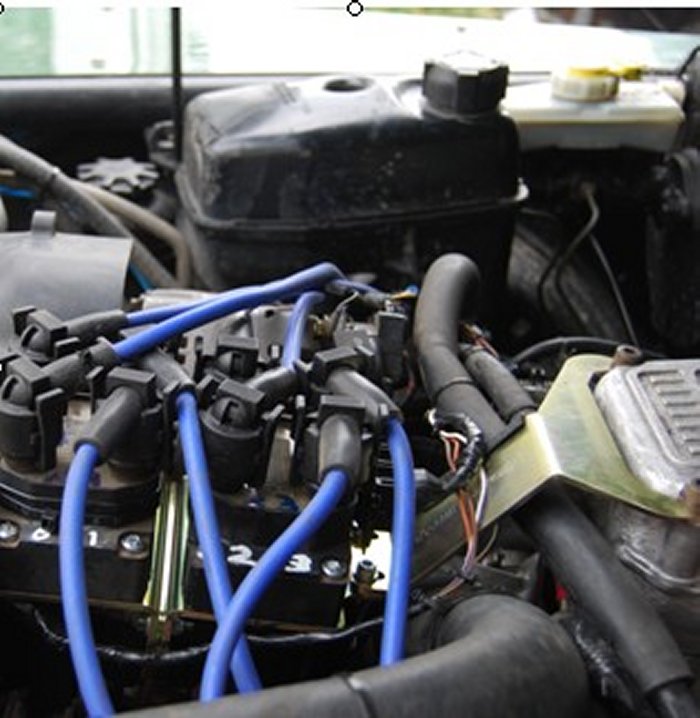

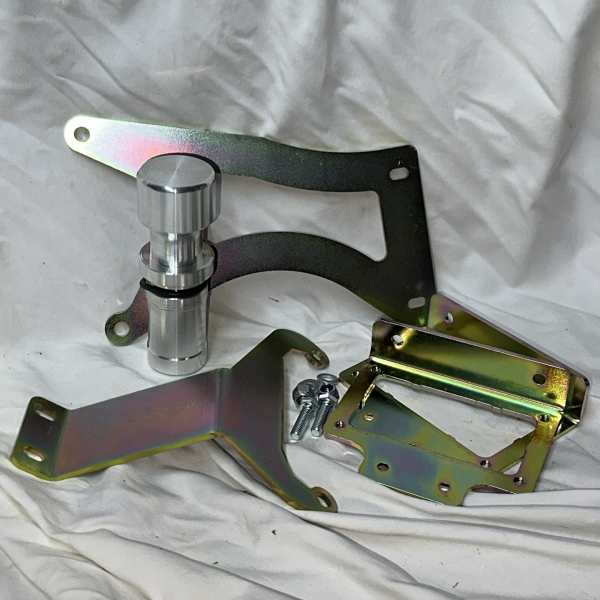

'Serpentine' Twin Coil Pack Mounting for EDIS

Our Twin Coil Pack mounting kit has every nut screw bolt washer spacer needed for simple professional quick quality installation.

Again CNC Laser Cut & Folded for G1 Ford Coil Pack Mounts used in EDIS Megasquirt instals made in 3mm Steel, in a Deep passivated finish.
Mounting holes for the 8 x 'Coil Pack' bolts are pre-drilled and tapped ready to fit.

As above - and this is important - this only fits NON GEMs Serpentine engines - i.e. Engines that are both 'Serpentine' AND have a Distributor,
it has been designed specifically for the Rover V8 'Serpentine' 3.9 & 4.2 V8 EFI Engines in this section.

Twin Coil Pack Bracket Upgrade Adapter Plates Kit

As you may have read - we specialise with our Kits with the Ford G1 Coil Packs. We like these due to the fact they will run under water. However, we have been asked by numerous customers to make our Coil Pack Bracket Kits to take the Later Coil Units sometimes used in MS2 and MS3 applications which is common on modern VWs Audi Skodas etc P/Ns : 032905106E 032905106B etc as in the pictures opposite.

We have now made our new 'Adapter Plate Kits' for these to now be used on ALL of our existing Coil Pack Kits. Note, these are a ADD ON Kit to the Coil Pack Bracket Kits themselves, oh, and we do NOT supply a Coil !. The Kit comes with 2 x adapter plates, Tower Spacers bolts washer etc etc etc part no's being (NOT Supplied in Kits)

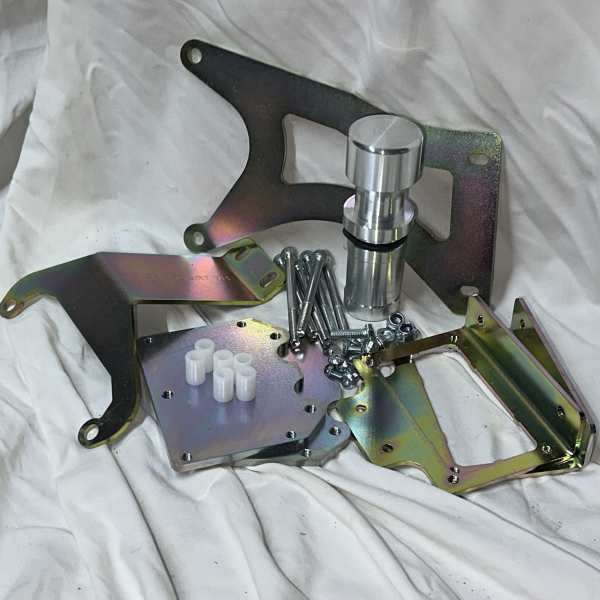

'Serpentine' Twin Coil Pack Mounting for VAG Coil Packs

This Twin Coil Pack Mounting Kit allows fitment of the later 'VAG' Coil packs vs the other Kit designed for 'EDIS' type 'G1' Coil Packs.
As above - and this is important - this only fits NON GEMs 'Serpentine' engines - i.e. Engines that are both 'Serpentine' AND have a Distributor.

If in doubt the 'VAG' Coil Packs that fit this Kit are common on modern VWs Audi Skodas etc P/Ns : 032905106E 032905106B etc

We have now made our new 'Adapter Plate Kits' for these to now be used on ALL of our existing EDIS based Coil Pack Kits should you ever upgrade.
This Kit comes with Our 'Twin Coil Pack Mount Bracket' + 2 x 'Adapter plates', Tower Spacers, all Bolts, Washers etc & everying you need.

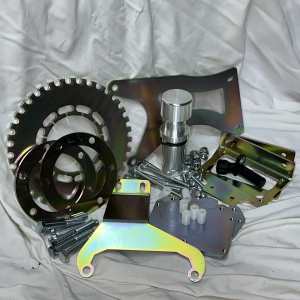

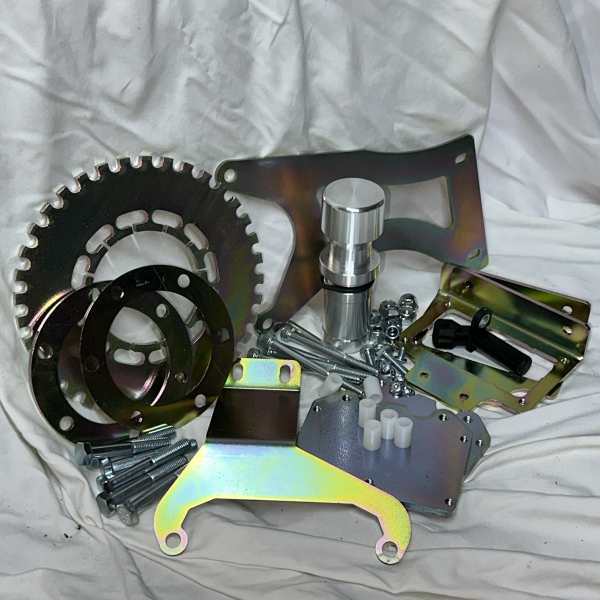

Serpentine Trigger Wheel, VR Sensor Bracket, Twin Coil Pack Bracket and VR Sensor Kit AND CNC Distributor EDIS

Specifically designed for the Serpentine V8 Engine types listed in this section, and for use with the Ford Generation 1 Coil Packs.
This Kit contains our 5mm Trigger Wheel (its thickness gives reliability in both wheel strength and high quality system signal - even in bonnet deep mud)- specifically made for these variants, with 'Slots' to allow adjustment to aid setting timing correctly - and gives ability for compensation for wrong timing if you don't get it quite right ! (around +/- 9 degrees).

A CNC Steel 'Spacer' ring gives the correct 'Spacing Gap' from the 'Pulley Wheel', plus a CNC 'Locking Ring' which acts like a giant washer when all bolted up.

These all have a deep 'Zinc Passivation' finish, and come complete with 6 x new Bolts (as the standard ones will be too short), 6 new nylocs, and is designed to be used in conjunction with our 'VR Sensor Mounting Kit' which is included and detailed below. Click here for an installation video: See Installation Video

Space is very tight on this engine. As such it's essential the Distributor is removed and replaced with our CNC Machined NON Exchange 'Billet' Dinky Dizzy (supplied as well in this kit) which is machined from High Quality Aluminium, complete with a new Genuine LR Distributor 'O' Ring. These Units MUST be fitted if using our Twin Coil Pack Mounting Kits, as the existing Distributor fouls.

However, being 'Non Exchange' your old Distributor can then be sold, and may repay more than you might imagine !

Once the original Distributor is removed, and the CNC Dizzy Replacement unit supplied is 1st fitted the rest of the Kit can then be fitted and comes complete with all nuts bolts and washers etc to fit the twin coil packs in the space now freed up.

This VR Sensor Mounting Kit has 3 way adjustment, this is to help with fine tuning of the'Air Gap', correct Timing Position, and correct alignment of the Trigger Wheel to get a full and clear signal by being central. Similarly the 2nd picture shows this kit in the fitted position with the Trigger Wheel Mounted.

It has been designed for use with a Ford Type VR Sensor (also included in the kit and listed below), in a Passivated finish, with all fittings supplied.
These are made to have the ability to have "Fine Adjustment" for getting the 'Air Gap' between the VR Sensor and the Trigger Wheel "Spot On"

The last part of this kit is a new Quality Brand New Ford VR Sensor. We avoid pattern parts in 'white boxes' nobody wants to own up to making.
This is one of the key components in the system, do you really want to use a cheap poor quality pattern part, or one from a scrap yard with 100,000+ miles use ?.!!!

This kit will Take the 'Ford Generation 1' Ford Coil Packs, which are used often used with a EDIS Module, the later VW Audi Coil Packs will NOT fit this kit, but they will with the addition of our Coil adapter plates, and that kit is listed below.

Serpentine Trigger Wheel, VR Sensor Bracket, Twin Coil Pack Bracket and VR Sensor Kit CNC Dizzy Blank VAG

Specifically designed for the 'Serpentine V8 Engine types listed in this section.

The contents are exactly as in the previous listing above - but with the addition of a Pair of our CNC Coil pack adapter kit plates

The later VW / Audi Coil Packs are a common unit accross many modern cars including VWs Audi Skodas etc

P/Ns : 032905106E 032905106B and other variants - but coils can be seen in the picture opposite.

So, in this kit you get all of the parts in the previous Kit listing PLUS we have our CNC 'Adapter Plate Kits' allowing these later VW Audi coils to now be used.
The 2 x adapter plates come complete with Tower Spacers, bolts washers etc.

So, Just to be clear - This Kit is designed to take the later VW Audi Coil Packs, and has all the contents in the previous Kit listed above PLUS 2 x CNC cut Adapter Plate kits

** This Kit is Supplied in all our MS1X and MS2X Kits **

Serpentine CNC Blanking Dumpy Dizzy

The V8 'Serpentine' Distributors can be removed as the oil pump - unlike the earlier V Belts, is crank driven, not off the end of the Distributor.

These Replacement units are CNC Machined with no exchange required - outright purchase and are machined from High Quality Aluminium billet, & come complete with a new Genuine LR Distributor 'O' Ring.

These are required for the install of one of our Serpentine Twin Coil Pack mounting Kits (EDIS or VAG !), as the existing distributor fouls, but for other instals we often
sell these as is nice neat way of tidying up your engine bay !

Lastly, being that these are 'Non Exchange' your old Distributor can then be sold, and may repay more than you might imagine !

Complete Serpentine PWM Control Kit Pre Loved Genuine Bosch Controller unit with Mounting Bracket Kit

We have managed to source a number of good used genuine Bosch units (the pattern ones are dire and die in weeks !).
So, whilst these might be used - the Genuine Bosch Units are really well made, we don't buy these in new as they are over £190 + VAT !!.

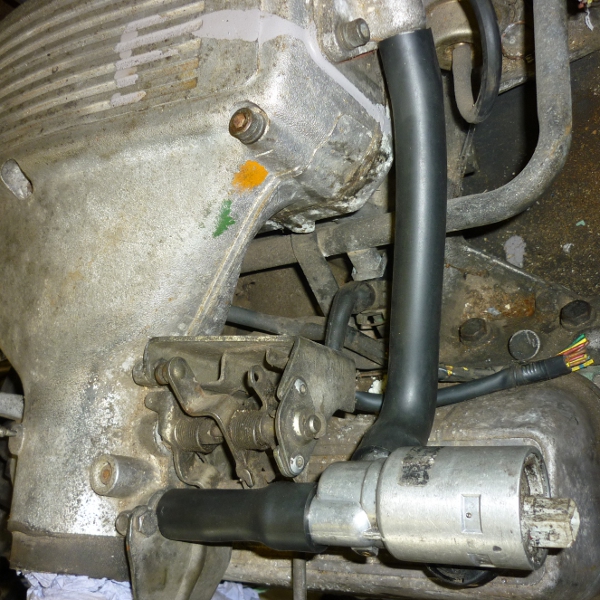

This kit is designed to give you 'PWM Control' on your engine. PWM control is in simple terms a 'Cold Start' / 'Auto choke' facility and also helps stabilise tickover.
The programming for these is already built and programmed into all our ECUs, so connect it up and it will work straight away.
It is actually programmable, so you can fine tune your tickover control and the cold start settings to suit you and your engine.

The PWM Kits are again Engine Specific, this one is designed for the 3.9 and 4.2 Serpentine Engines.

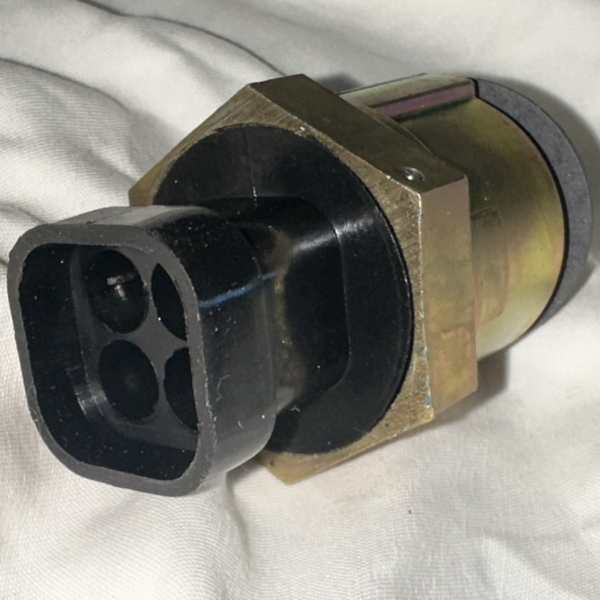

The Kit comes complete with new hoses, a conversion Bung for the 'Stepper Motor' hole, and a PWM Control unit.
Whilst not essential to run MS (many racers just don't bother with it), it really is however a 'Nice to have' and makes for a more civilised engine both in starting from cold and helping to give a rock-solid tickover.)

A CNC laser cut and folded Deep Passivated Mounting Bracket is included, mounting on the rear cylinder head existing holes (see picture).
A Very popular optional extra on MS1 kits!

** This Kit is Supplied in all our MS1X Kits **

COMPLETE replacement Hotwire type AFM Unit

We have managed to source a small number of 3.9 V8 Hotwire type Air Flow Meters
here we have removed the end plate so it is all ready to fix to the AFM replacement tube and offer a COMPLETE unit.

The small additional cost of buying this outright is more than offset by selling a Working 3.9 Hotwire AFM on ebay vs cannibalising it !.

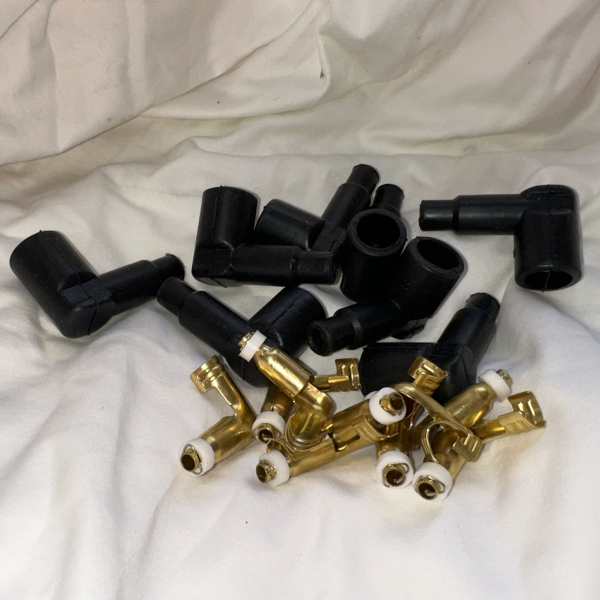

DIY V8 VW/ Audi V8 Ignition Coil leads ENDS ONLY Kit for VW / AUDI Coil Packs

This Kit is for for just the 8 x end terminals (2 parts, Silicone boot, and terminal x 8) as a Kit to finish, or convert your own leads.

We can also supply (see listing below) a more complete Kit, with new Red or Blue lead, and Ignition Terminals and boots as a complete kit.

Choice is yours !!
Full Instructions Included.

THIS KIT IS FOR THE LATER COIL set up using VW / AUDI Coil Packs

** This Kit is Supplied in all our MS1X and MS2X Kits **

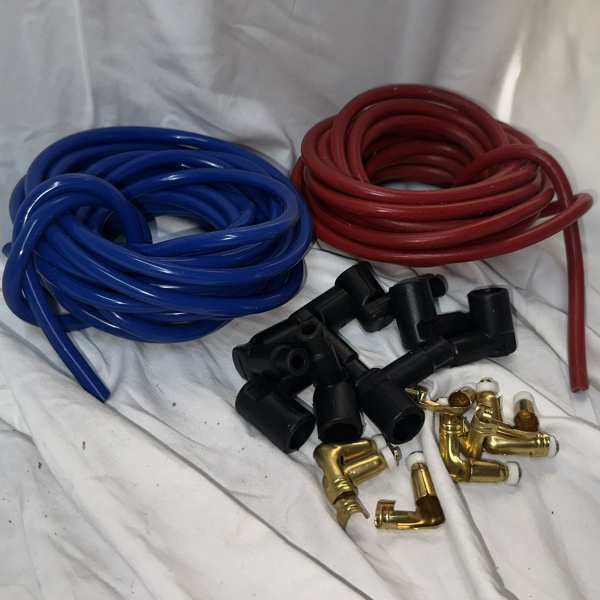

DIY Full V8 Ignition Lead Set - This kit is for Later VW/Audi Coil Packs

High Quality and Good Condition Ignition Leads are key to any V8 running smoothly, more so when your engine is either covered with or going under deep water.

This kit allows you to build up a set of Ultra-High quality leads at sensible cost.
Double Insulated Leads, Stainless Steel Terminals for both Coil and Plug ends keep corrosion at bay.
Complete with new Silicone Boots and Hoods.

Full Instructions Included (These are NOT supplied in our Standard Kits and are an Optional Extra.)

THIS KIT IS FOR THE LATER VW / AUDI type coil packs

Megasquirt V8s Range of 'AFM' Tubes which take MAT Sensor

Listed below are our range of 4 x AFM Tubes, all of which take our MAT - 'Manifold Air Temperature' sensors for Megasquirt systems.

One of the design challenges we wanted to achieve was to get rid of the massive restriction in air flow that the standard factory 'Hotwire AFM' achieved so well.

If you look at the picture opposite you will see that there is a huge change now in the ID of our tubes which remove this restriction
meaning more air to the engine, which if you combine with the better stronger Spark, and Megasquirts 'mapable fuelling' means - MORE power !.

These are all available as part of our standard kits - with the ability to choose whichever AFM suits your engine bay best, or purchase here on there own.

Air Flow Meter Tube Stand Alone version

We now do 4 Models of the 'Megasquirt V8 AFM (Air Flow Meter) Replacement Units', all have been plated in a Deep Passivate finish.

The 1st is this complete replacement unit, and is more suited to those who really need the absolute confidence of having a more waterproof solution.

This Model completely replaces the original AFM Assembly which can then be sold. This is basically the same length overall as the unit removed keeping life simple !.

It is designed to replace the AFM where currently fitted, and is secured by 2 Hoses – 1 Hose between Plenum and the Unit,
the other between the unit and Air Filter Housing + Snorkel. The 'MAT' Sensors supplied by us are a direct fitment into this assembly.

These are all available as part of our standard kits - with the ability to choose whichever AFM suits your engine bay best, or purchase here on there own.

Air Flow Meter tube the Le Stubby Version

The 2nd option of our AFM tubes is the 'Le Stubby' Unit

These are as a result of being asked for something very very short where space is at a absolute premium.
So, these are just 70mm long including being flared both ends. The actual 'Mounting Boss' for the Sensor is 20mm,
so, if you add say a hose and have it 25mm inserted into each end, then in effect the unit takes up just 20mm !.

Deep Passivate finished, and really good for those engine bays like mine - that have 'Aaaargh ...bugger all room' problem .

These are all available as part of our standard kits - with the ability to choose whichever AFM suits your engine bay best, or purchase here on there own.

Air Flow Meter tube the Le Stubby Version with Port Inlet Pipe

The 3rd option is the 'Stubby Unit' - But with a 'PWM Port Take Off'

These units are used where there is a need to run a PWM / IAC unit which is being used where Stepper Motors are either not present on system,
or stepper unit can't be run and in a Deep Passivate finish.

Again, having been asked for something very very short where space is a premium, we have these which are the same + PWM Port on side for the PWM system.
Just 70mm long flared both ends and as in the picture with the Port take off TIG welded in place.

These are all available as part of our standard kits - with the ability to choose whichever AFM suits your engine bay best, or purchase here on there own.

Air Flow Meter tube which uses part of a 3.9 AFM Unit

The last option is the Model shown opposite.

This unit uses the end part of an existing 3.9 Hotwire AFM Assmebly which bolts to the end of the new replacement AFM flange with suitable sealer (LR STC50550 is recomended).
This reassembled unit then allows the standard V8 Air Filter Housing to be clipped back into place and maintains everything in the standard position within the engine bay.

However, this factory join from AFM to Air Filter Box is sealed with just 2 x O rings, and for deep water wading this factory seal can fail, hence why in competition
the complete replacement unit is more often one of the other units we do , but for a road based motor this is a popular and neat under bonnet solution.

Finished in Deep Passivate plating all available as part of our standard kits - with the ability to choose whichever AFM suits your engine bay best, or purchase here on there own
