The FOUR Megasquirt Rover V8 MS1X Kits all are 'Engine Specific' and contain everything required for a complete installation.
When we say 'Engine Specific' - it means that every part is designed to fit the Specific V8 Engine version in question - Perfectly !
Hate wiring.... (Most customers do !) ? - Then you will love these kits - Especially the MS1X Wiring loom !.
Looms also come complete with their own built in 'Relay' & 'Fuse' box, plus a 'Master Fuse' too, giving serious protection.
All MS1X Kits have a professionally made Plug'n Play wiring loom, with only 7 wires to connect - these are listed below.
Your 'Switched Live' - We would recommend this is to your 'Ignition Switch' (Details in the Instruction Manual).
Fuel Pump 'Positive' wire. (If you are converting from a 'Carb' system you will need one of our High Pressure Fuel Pumps.)
The MS1X Looms Main 'Battery Positive' cable - Which goes to your 'Battery Positive' Terminal.
Then the MS1X Looms Main 'Negative' cable, Bolts onto the rear of your Cylinder Head.
Lastly, there are then 3 coloured wires for you to connect to your 'TPS' (Throttle Position Sensor)
Everything else is via Brand New fully labelled Plugs.
When you have done the above - That's it - Your new Megasquirt MS1X Wiring Loom installation is finished !.
The 4 Differing MS1X Kits are dependent on your V8 engine variant - Identified below should you be unsure.

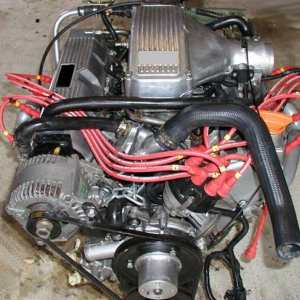

'V Belt' Engines are easily identified having more than 1 x Belt on the front - 2 sometimes even 3.

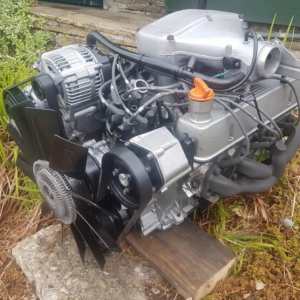

'Serpentine' Engines have just one Wide 'Grooved' belt that wraps around every pulley, also these have a Distributor & a Silver Plenum

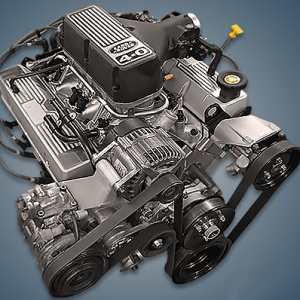

'GEMS' engines are also 'Serpentine', but have no distributor, and also have Black coloured Plenums

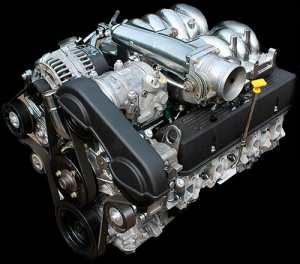

'THOR' engines have 'Banana' Shaped Inlet Manifolds on the top of the engine
Megasquirt V8 MS1X Kits - Select your Engine Kit from the 4 choices below - 'V Belt', 'Serpentine', 'GEMS' or 'THOR'
MS1X Rover 3.5 & 3.9 & 4.2 V8 'V Belt' Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for V Belt Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS1X ECU) that actually is stable and works !
MS1X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose 'PWM Control Kit' & 'Dinky Dizzy' Conversion or a full new 'Ignition Lead kit' - See 'V Belt section' for details.
If you have the early 3.5 V8 running the (dreadful) 'Flapper EFI' system we do not recomend this for any Megasquirt Conversion & to upgrade to a 'Hotwire' Inlet assembly.
Flapper Trumpet & Plenum are a simple 'Nut & Bolt' swap over to Hotwire. Source your own, or we have 'Hotwire' Systems you can purchase. Ring or Email to discuss.
MS1X Rover 3.9 4.2 V8 'Serpentine' Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'Serpentine' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Being a 'Serpentine' Kit a 'Blanking Dizzy' is included, as it is needed to allow the fitting of your new Serpentine Coil Pack Mounting Unit. !
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS1X ECU) that actually is stable and works !
MS1X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose 'PWM Control Kit' or a full new 'Ignition Lead kit' - See 'Serpentine section' for details.
MS1X Rover 4.0 4.6 V8 'GEMS' Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'GEMS' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS1X ECU) that actually is stable and works !
MS1X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose 'PWM Control Kit' & or a full new 'Ignition Lead kit' - See 'GEMS section' for details.
MS1X Rover 4.0 or 4.6 'THOR' V8 Kits include the following :
Rover V8 Engine Trigger Wheel, Twin Coil Pack Mounting, VR Sensor Bracket, & New VR Sensor, all designed for 'THOR' Engines with all fittings.
Brand New 'High Output' VAG Coil Packs (2x), with all fittings you'll need.
Air Flow Meter & Manifold Air Temperature sensors + AFM with 3 versions - all are the same price - choose what suits you best !
New Coil Pack Ends allowing reuse your existing Plug leads, or upgrade to a new ignition lead kit - in Red or Blue
Megasquirt ECU Communication Cable - USB (Computer) to Serial (MS1X ECU) that actually is stable and works !
MS1X ECU 'Ready to Run'- Fully Programmed to suit your your V8 engine variant.
Comprehensive Installation & Build Manual + Link to Free Version of 'Tuner Studio' Diagnostic Software - All on a USB Pen Drive
Optional Extras ? - Choose 'PWM Control Kit' & or 'Full Thermostat Ali Kit/ Output Top Hose' or a full new 'Ignition Lead kit' - See 'THOR section' for details.
